Home » Hydraulic Press for Molding » Hydraulic Transfer Molding Press
Click here for Specifications

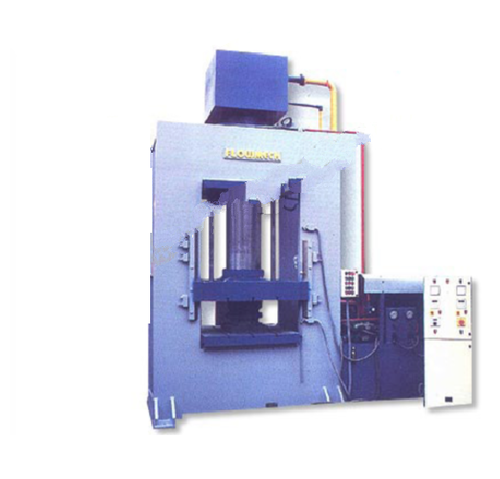

Hydraulic Transfer Molding Press

We are one of the leading manufacturer of a wide range of transfer molding press and hydraulic transfer molding press. Transfer molding presses are specially designed for optimum production of simple and intricate transfer molding of Malemine, SMC, Bakelite, DMC with ejection facility and soft opening just after the churning period to avoid jerky movement which might damage the component being molded.


Hydraulic Transfer Molding Press
Hydraulic Transfer Molding Press


Hydraulic Transfer Molding Press

Technical Specifications

MODEL NO. CAP. TON PLATEN SIZE (MM) DAY LIGHT GAP (MM) STROKE (MM) BORE/ RAM DIA (MM) TRANSFER CYL. CAP. (MM) TRANSFER CYL.STR-OKE (MM) PRESS-URE KG/CM² MOTOR H.P
FTMP 100 100 400 X 400 400 250 250 40 150 210 5 Send Enquiry
FTMP 150 150 500 X 500 500 350 300 60 200 215 7.5 Send Enquiry
FTMP 200 200 600 X 600 500 350 350 80 200 210 10 Send Enquiry
FTMP 250 250 750 X 600 500 350 400 100 250 210 10 Send Enquiry
FTMP 300 300 800 X 600 600 400 430 120 250 210 15 Send Enquiry
FTMP 400 400 900 X 750 600 400 510 160 250 210 20 Send Enquiry
FTMP 500 500 1000 X 800 600 400 560 200 250 210 25 Send Enquiry
FTMP 600 600 1200 X 900 900 500 610 240 300 210 30 Send Enquiry
FTMP 800 800 1500X1000 1200 600 710 320 300 210 50 Send Enquiry
FTMP 1000 1000 1800X1000 1500 800 810 400 400 210 75 Send Enquiry



Note:
» Transfer Molding Press is available upto 4000 Ton Capacity as per the Customer Requirements.
» Transfer Molding Press will be available in Pillar / Gate / H-Frame Type.
» High Capacity press will be preferred in column type
» Transfer Molding Presses will be manufactured as per the customer requirements
» Click here to Request a Quotation for Hydraulic Press over & above the specified capacity.


Hydraulic Transfer Molding Press

We are one of the leading manufacturer of a wide range of transfer molding press and hydraulic transfer molding press. Transfer molding presses are specially designed for optimum production of simple and intricate transfer molding of Malemine, SMC, Bakelite, DMC with ejection facility and soft opening just after the churning period to avoid jerky movement which might damage the component being molded.


Hydraulic Transfer Molding Press
Hydraulic Transfer Molding Press

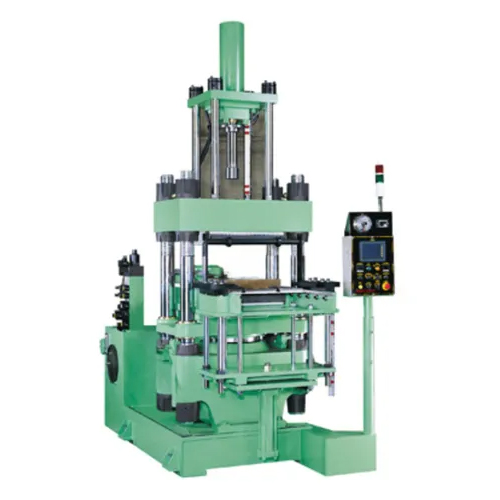

Hydraulic Rubber Transfer Moulding Press

A piece of uncured rubber is put into a part of the mould during the transfer moulding process. The mould is closed, and the rubber is forced into the cavity through a small opening under hydraulic pressure. While the rubber dries, the mould is kept closed. The plunger is raised, and the material from the transfer pad is withdrawn. The portion can be removed when the mould has been opened. During this moment, any flash remaining is trimmed.

Advantages:
  • High Cavity Count
  • Design Flexibility
  • Short production cycle


Advantages:
O-rings, Medical stoppers, Shockproof articles, Black rubber products, Electronics components, Keyboards, Rollers, Gaskets, Conductive products etc.

Product Details:
  • Clamping Force : 100 Tons - 1000 Tons
  • Machine Type : Pillar type / H-Frame Type
  • Daylight Gap : 400 mm
  • Stroke Length : 250 mm
  • Bore Diameter : 250 mm
  • Motor Power : 5 HP
  • Working Pressure : 210 kg/cm2
  • Condition : New
  • Country of Origin : Made in India


Hydraulic Rubber Transfer Moulding Press
Hydraulic Rubber Transfer Moulding Press
