Home » Hydraulic Press for Molding » Hydraulic Rubber Molding Press
Click here for Specifications

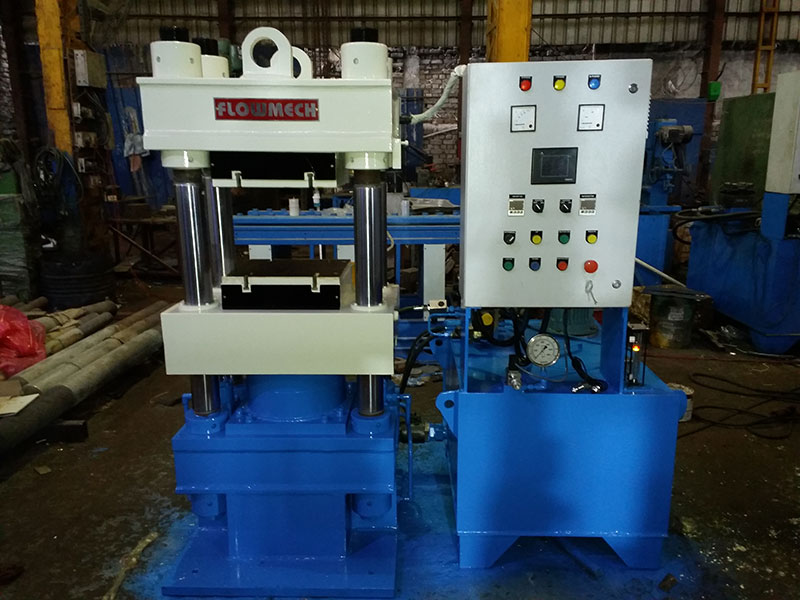

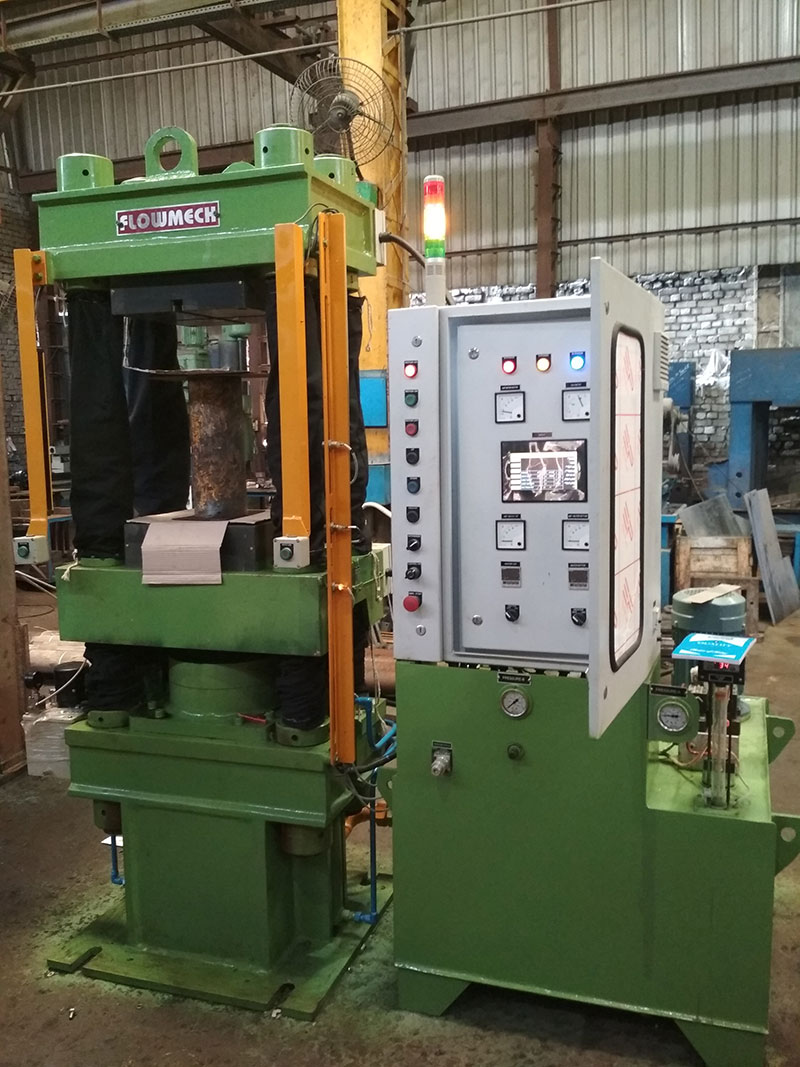

Hydraulic Rubber Molding Press

We are manufacturing fully automatic two tation PLC control rubber molding presses and three station PLC control rubber molding presses with common power pack having advance technique of auto degassing or air breathing. Rubber molding presses are used to increase the production, improves the quality and save manpower, electric power, rejection time and space. Four pillar type rubber molding press is helpful to increase the production, improve the quality and save manpower, electric power, rejection, time and space.

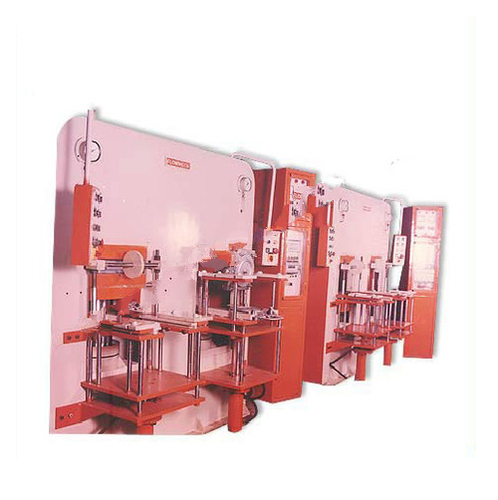

Hydraulic Rubber Molding Press (Frame Type)
Hydraulic Rubber Molding Press (Frame Type)

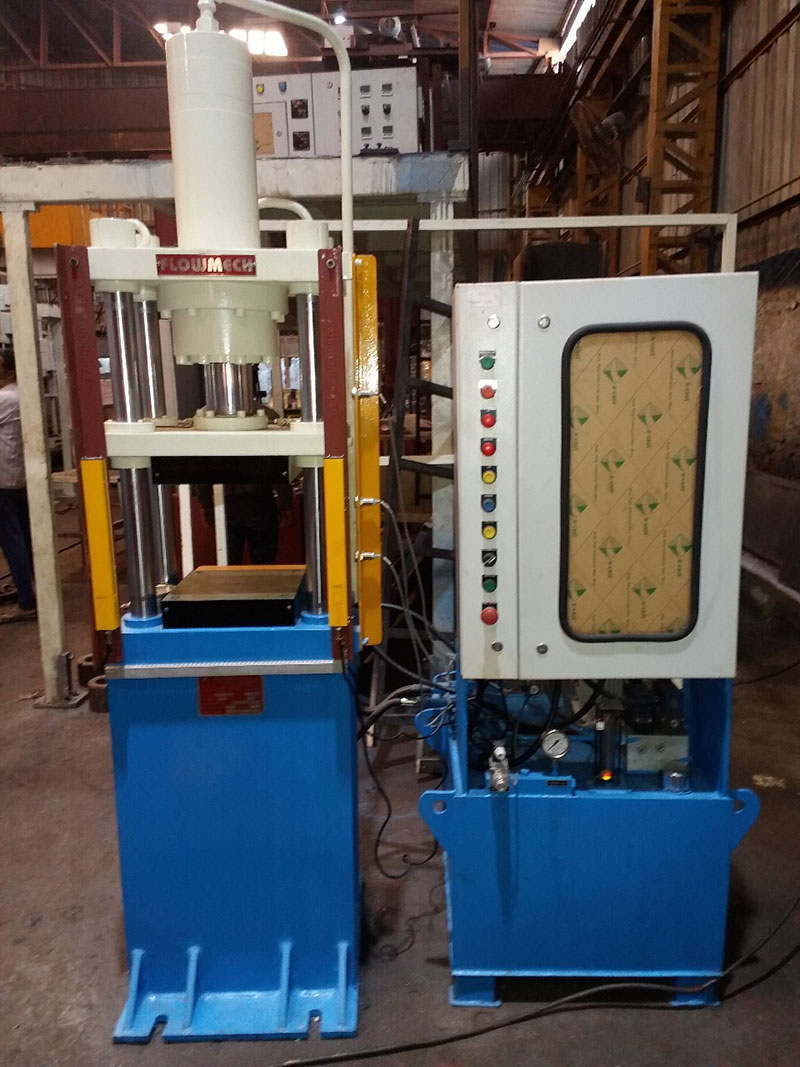

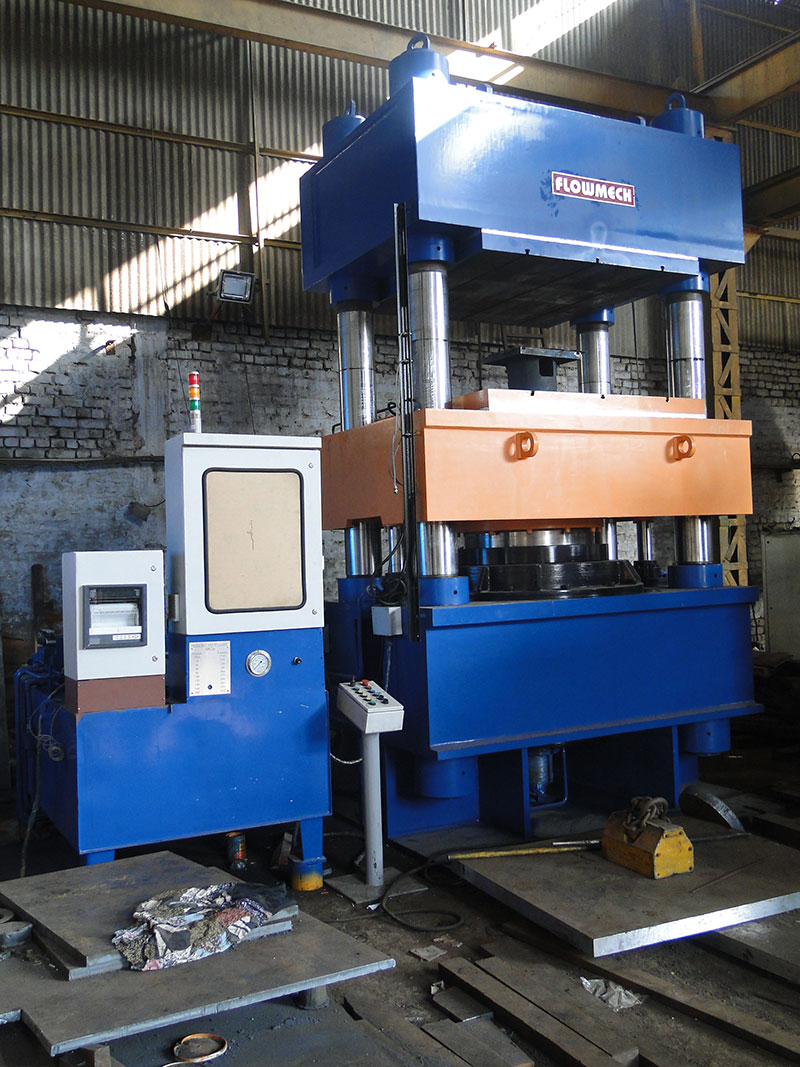

4 Station Rubber Molding Press (Pillar Type)

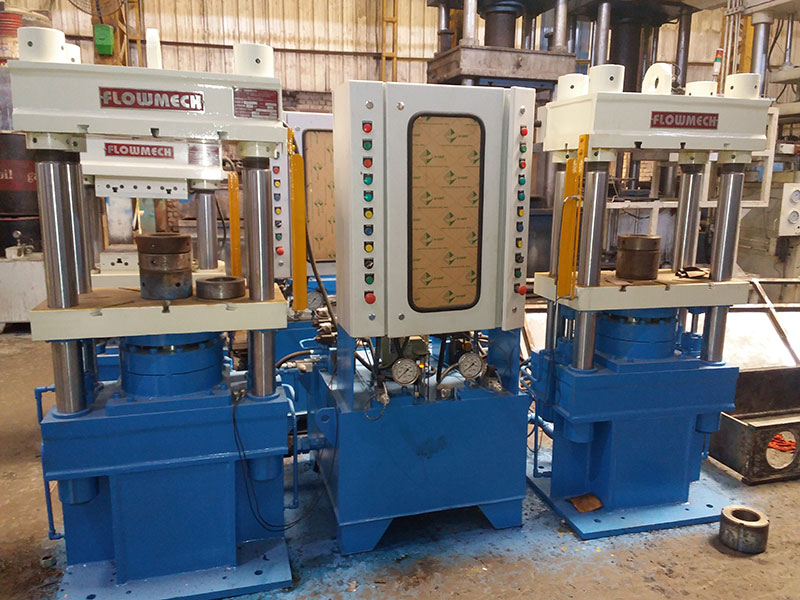

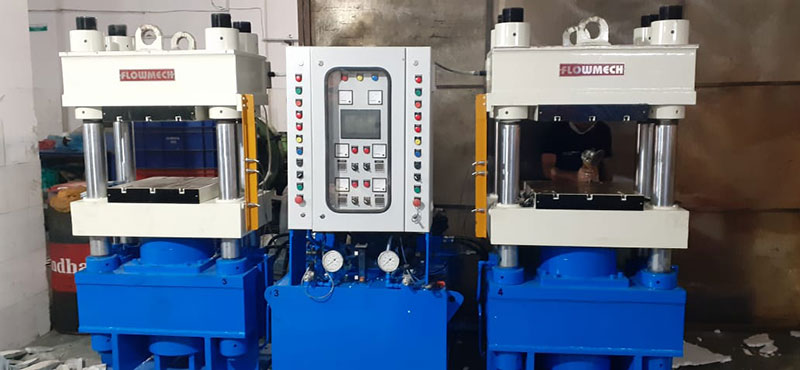

2 Station Rubber Molding Press (4 Pillar Type) We are manufacturing fully automatic two station PLC control rubber molding presses and three station and four station PLC control rubber molding presses with common power pack having the advanced technique of auto degassing or air breathing.

Rubber molding presses are used to increase the production, improves the quality and save manpower, electric power, rejection time and space. Four pillar type rubber molding press is helpful to increase the production, improve the quality and save manpower, electric power, rejection, time and space.

Product Details :
Automation Grade:Automatic, Semi-Automatic
ColorBlue
Electric Motor:20 HP
ModelFRM
Power Source:Electric
BrandFLOWMECH
Control Type:Control Type:
Max Force or Load:30-60 ton
PhaseThree Phase
Stroke(mm):150-550





Hydraulic Rubber Molding Press

Technical Specifications

MODEL NO. CAP. (TONS) PLATEN SIZE (MM) DAY LIGHT GAP (MM) STROKE (MM) BORE/ RAM DIA (MM) MOTOR H.P
FRMP 50 50 250 X 250 200 150 180 3 Send Enquiry
FRMP 100 100 350 X 350 300 250 250 5 Send Enquiry
FRMP 150 150 450 X 450 400 300 300 7.5 Send Enquiry
FRMP 200 200 500 X 500 450 350 350 10 Send Enquiry
FRMP 250 250 600 X 600 450 350 400 10 Send Enquiry
FRMP 300 300 700 X 600 500 400 460 15 Send Enquiry
FRMP 400 400 800 X 650 500 400 510 20 Send Enquiry
FRMP 500 500 900 X 750 600 450 560 20 Send Enquiry
FRMP 600 600 1000 X 800 600 450 610 25 Send Enquiry
FRMP 800 800 1200 X 800 750 500 710 30 Send Enquiry
FRMP 1000 1000 1350 X 1000 900 550 810 50 Send Enquiry



Note:
» Rubber Molding Press can be designed Pillar / Gate-H Frame Type
» Rubber Molding Presses can have Multi Daylights (1,2,3,4)
» Rubber Molding Press can have Multi Station (1,2,3,4)
» For Multi Station Press, Motor H.P. will change accordingly
» Click here to Request a Quotation for Hydraulic Press over & above the specified capacity.
