Home » Hydraulic Press for Sheet Metal » Hydraulic Deep Draw Press
Click here for Specifications

Hydraulic Deep Draw Press

Our hydraulic deep draw press are highly rigid, compact, space saving four-pillar type in design. Hydraulic deep drawing press are equipped with PLC, L.V.D.T depth control, photo sensor electronic safety guard, auto ejector. They are specially designed for uniform pressure on blank holder to avoid wrinkles during the process which improves the quality and productivity rate of products. Hydraulic deep draw press is suitable for manufacturing stainless steel utensils and other automobile draw components with high degree of finish, productivity and speed.

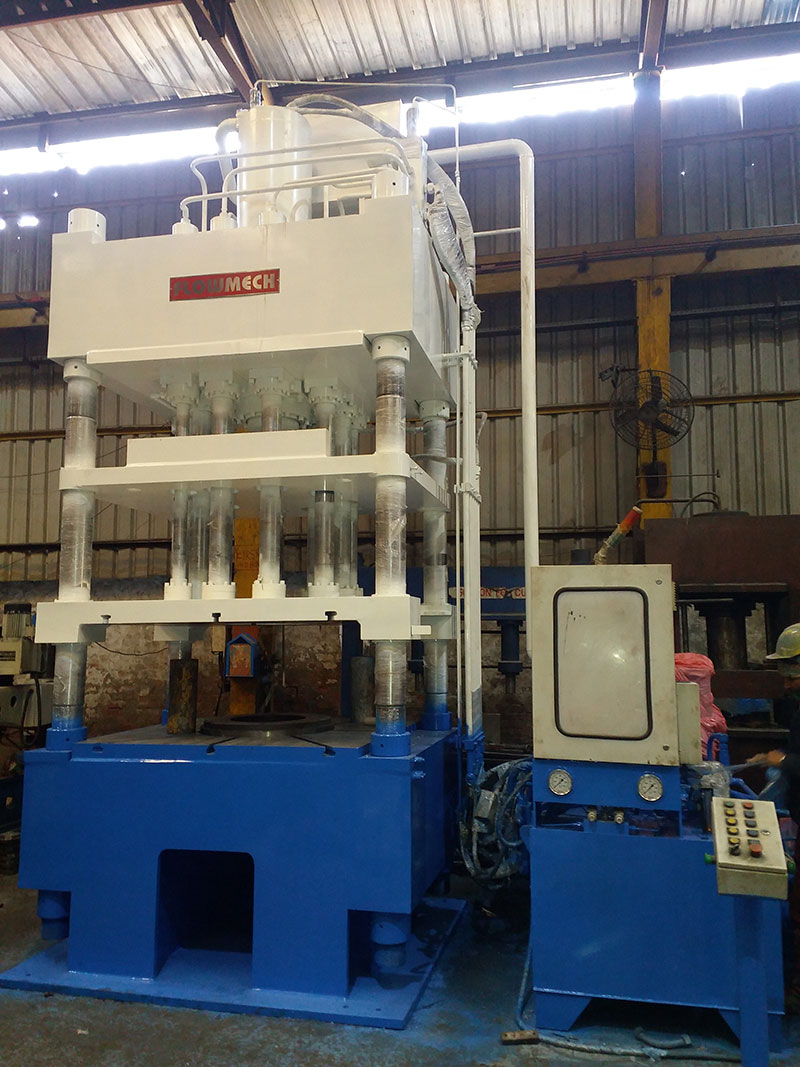

Blank Holder Hydraulic Deep Draw Press (Pillar Type)
Blank Holder Hydraulic Deep Draw Press (Pillar Type)

We are the leading manufacturer and exporter of
Hydraulic Deep Draw Press with Blank Holder.

Our hydraulic deep draw press is highly rigid, compact, space saving four-pillar type in design. Hydraulic deep drawing press is equipped with PLC, L.V.D.T depth control, photo sensor electronic safety guard, auto ejector. They are specially designed for uniform pressure on the blank holder to avoid wrinkles during the process which improves the quality and production rate of products.

Hydraulic deep draw press is suitable for manufacturing stainless steel utensils and other automobile draw components with a high degree of finish, productivity and speed.

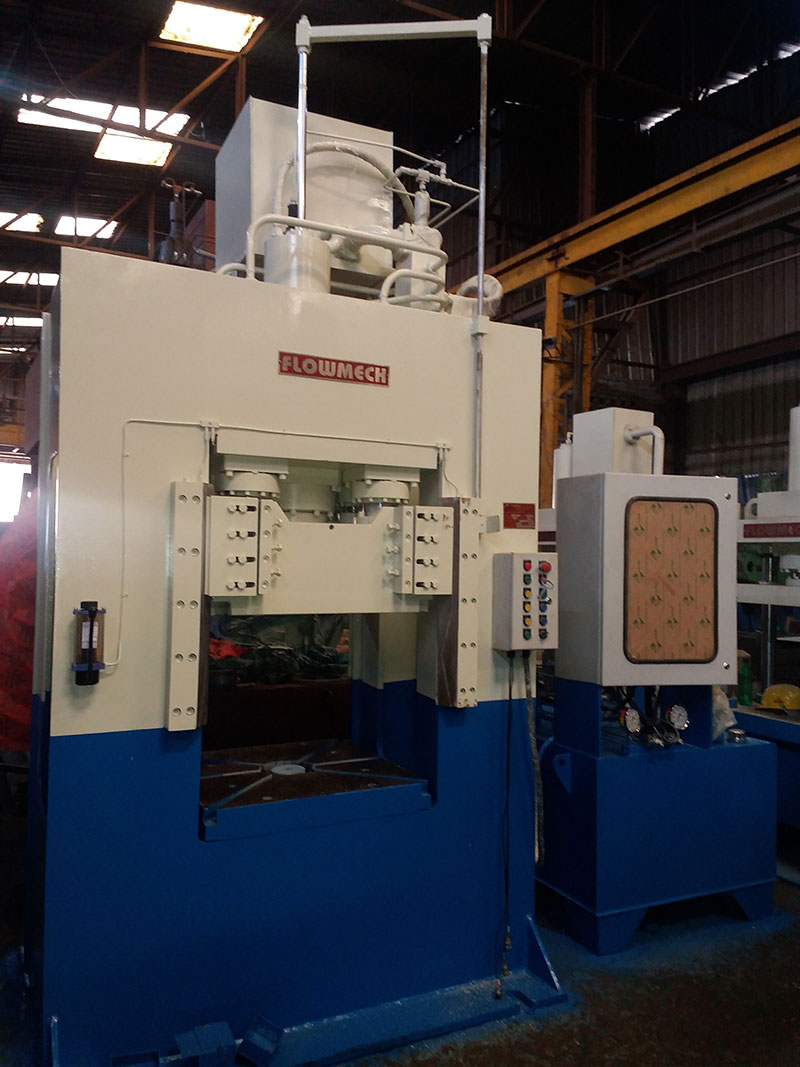

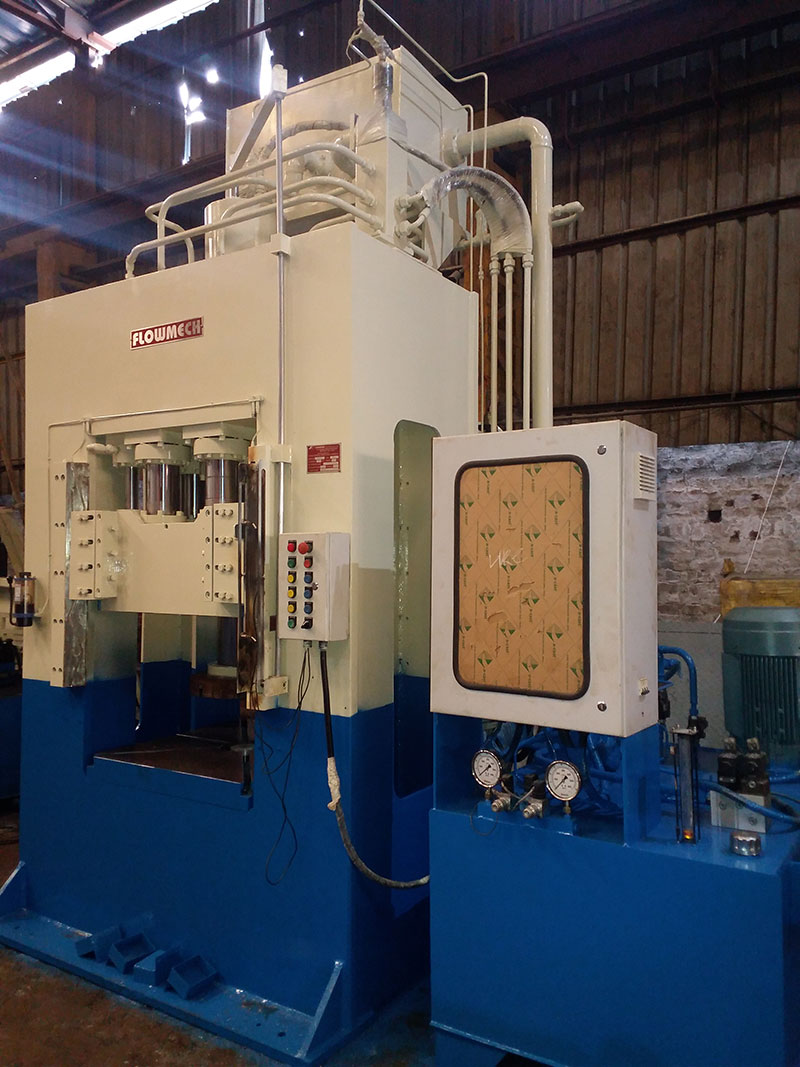

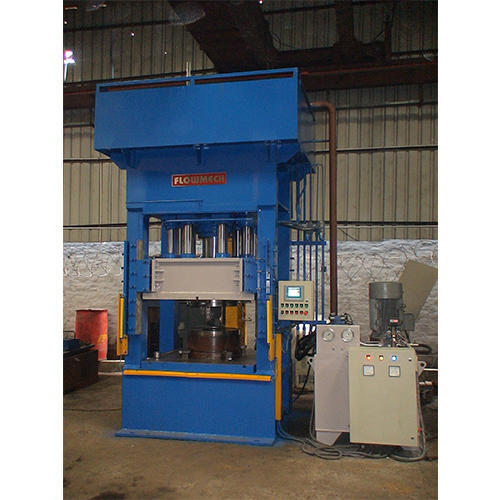

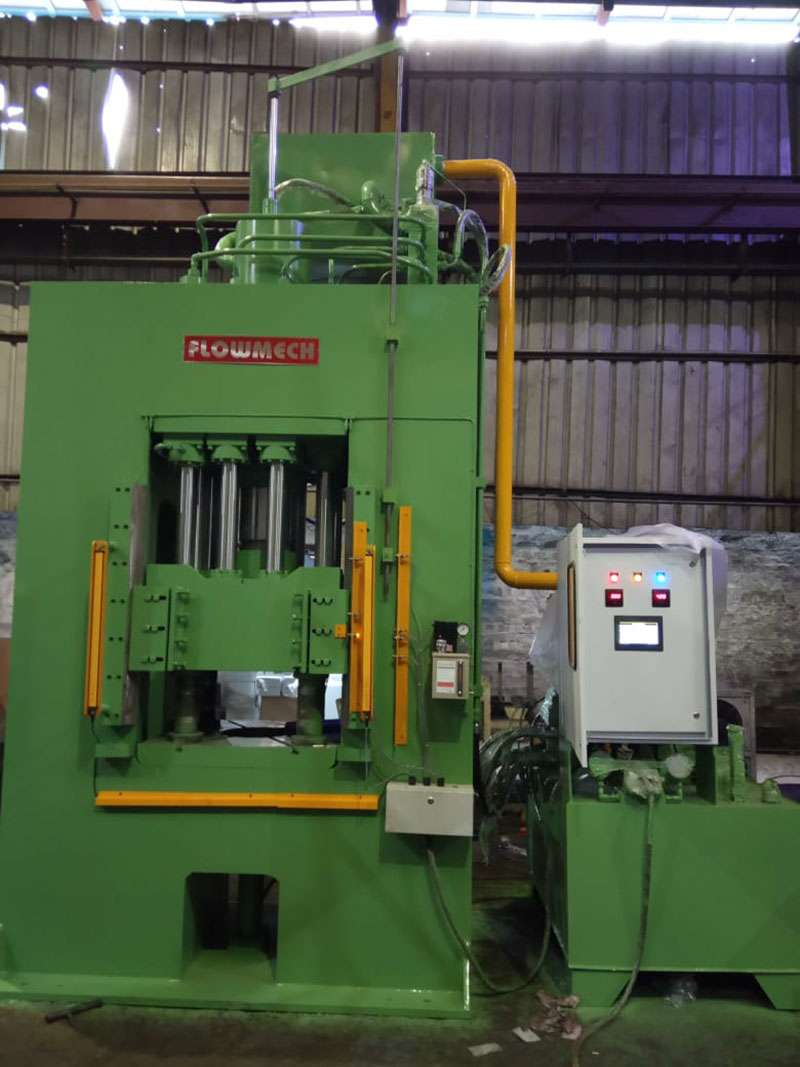

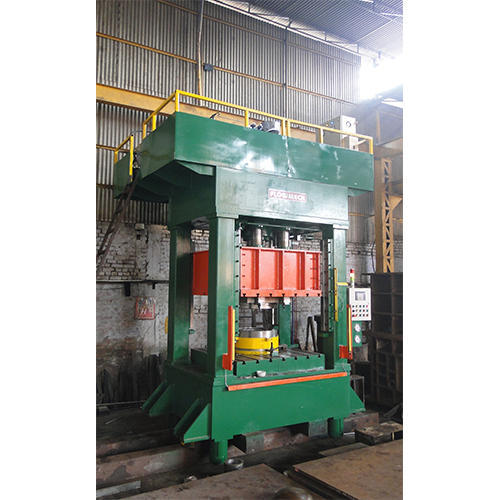

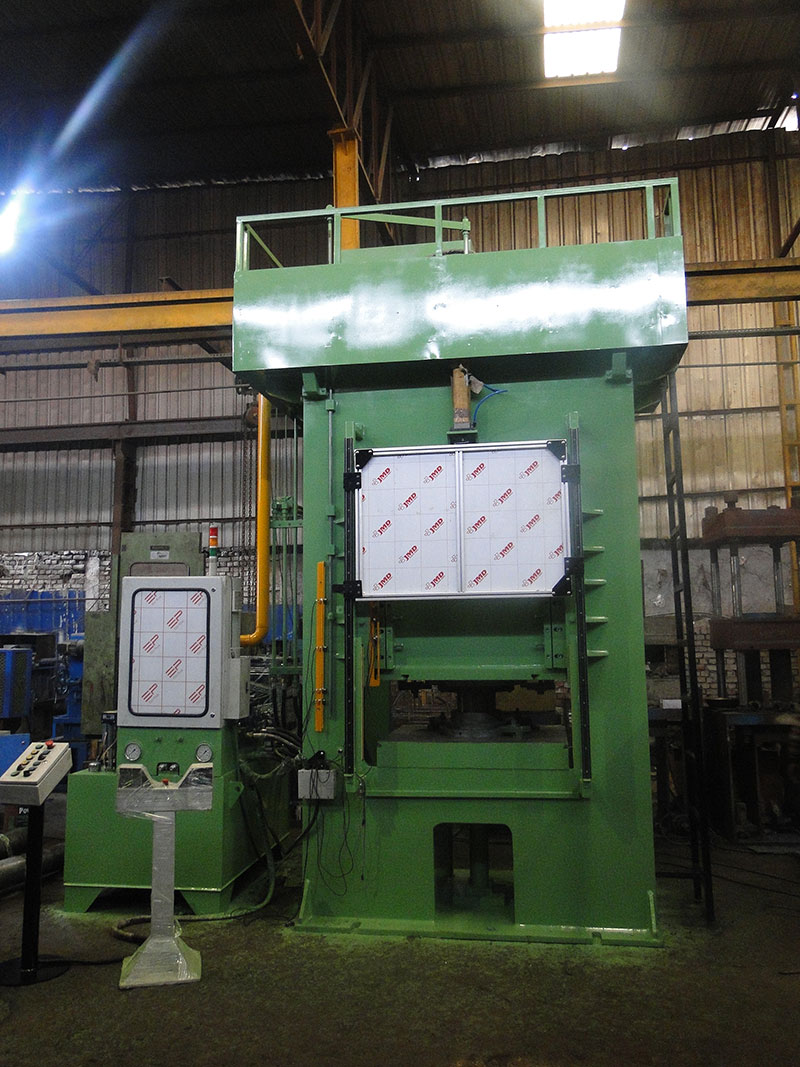

Hydraulic Deep Draw Press - Blank Holder (Frame type)
Hydraulic Deep Drawing Press - Blank Holder (Frame type)



HYDRAULIC DEEP DRAW PRESS (BLANK HOLDER TYPE)

Technical Specifications

MODEL NO. CAP. (Tons) MAIN CYL. CAP.(mm) BLANK HOLDER CAP (mm) BOLSTER SIZE (mm) DAY LIGHT GAP BLANK HOLDER STROKE MAIN CYL. STROKE MOTOR (H.P.) EJECTOR CYL. CAP. (Tons)
FDD-100 100 50 50 500x500 500 250 450 7.5x1 5 Send Enquiry
FDD-150 150 75 75 700x700 600 300 550 7.5x1 10 Send Enquiry
FDD-200 200 100 100 800x800 600 300 550 10x1 10 Send Enquiry
FDD-250 250 150 150 900x900 600 300 550 10x1 15 Send Enquiry
FDD-300 300 150 150 1000x1000 700 300 650 15x1 15 Send Enquiry
FDD-400 400 200 200 1200x1200 750 400 700 20x1 20 Send Enquiry
FDD-500 500 250 250 1200x1500 800 400 750 20x1 20 Send Enquiry
*FDD-500 500 250 250 1200x1800 800 450 750 25x1 20 Send Enquiry
FDD-600 600 300 300 1500x1800 900 450 850 20x2 25 Send Enquiry
FDD-800 800 400 400 1800x1800 1000 500 900 30x2 25 Send Enquiry
FDD-1000 1000 500 500 2000x2000 1200 600 1100 40x2 25 Send Enquiry



Note:
» Hydraulic Deep Draw Press can be designed Pillar / Gate / Frame Type
» High Capacity press will be designed column type preferably.
» Hydraulic Deep Drawing Press can be provided with speed as per customer requirement.
» The motor H.P. can be changed as per the speed provided
» Click here to Request a Quotation for Hydraulic Press over & above the specified capacity.

* Specially Designed for S.S. Kitchen Sink Manufacturing
