Hydraulic Moulding Press

Our Hydraulic Molding Press is designed to increase the production and is suitable for brake lining, rubber components like rubber mats, mica, rubber auto components, plywood pressing, wax filtration, rubber flaps, scooter mats, etc. with multi production. Its most special feature is the mechanical scissor arrangement which saves time of air breathing/multi degassing. Hydraulic Molding Presses are also equipped with advance technique of adjustable air breathing system. Our range of hydraulic molding press is available in two types:

- Scissor Type Two Daylight Hydraulic Molding Press
- Multi Daylight 2 Station Hydraulic Molding Press

Two Daylight Hydraulic Molding Press Scissor Type

Ask For Price

Scissor Type Two Daylight Hydraulic Molding Press

Ask For Price

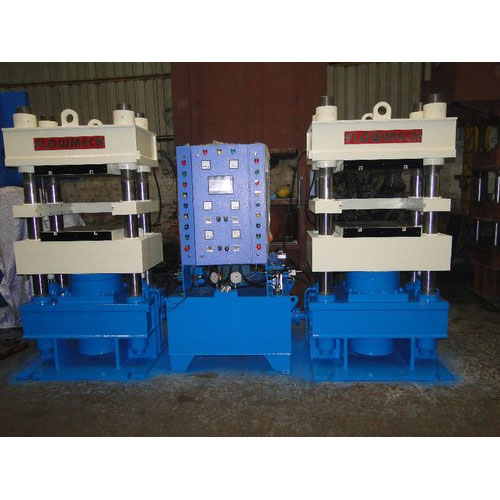

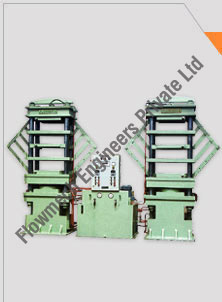

Multi Daylight 2 Station Hydraulic Molding Press

Our Hydraulic Molding Press is designed to increase the production and is suitable for brake lining, rubber components like rubber mats, mica, rubber auto components, plywood pressing, wax filtration, rubber flaps, scooter mats, etc. with multi production.

Its most special feature is the mechanical scissor arrangement which saves the time of air breathing/multi degassing. Hydraulic Molding Presses are also equipped with advanced technology of adjustable air breathing system.

We are manufacturing and supplying a wide range of Heavy Duty Multi Day Light Rubber Molding Hydraulic Presses. This range is highly demanded by the clients for catering sturdy performance and high strength.

HYDRAULIC MOLDING PRESS

Technical Specifications

MODEL NO.	CAP. (TONS)	PLATEN SIZE (MM)	DAY LIGHT GAP (MM)	STROKE (MM)	BORE/ RAM DIA (MM)	MOTOR H.P
FMP 50	50	250 X 250	200	150	180	3	Send Enquiry
FMP 100	100	350 X 350	300	250	250	5	Send Enquiry
FMP 150	150	450 X 450	400	300	300	7.5	Send Enquiry
FMP 200	200	500 X 500	450	350	350	10	Send Enquiry
FMP 250	250	600 X 600	450	350	400	10	Send Enquiry
FMP 300	300	700 X 600	500	400	460	15	Send Enquiry
FMP 400	400	800 X 650	500	400	510	20	Send Enquiry
FMP 500	500	900 X 750	600	450	560	20	Send Enquiry
FMP 600	600	1000 X 800	600	450	610	25	Send Enquiry
FMP 800	800	1200 X 800	750	500	710	30	Send Enquiry
FMP 1000	1000	1350 X 1000	900	550	810	50	Send Enquiry

Yes I'm Interested

Note:
» Hydraulic Molding Press is available upto 4000 Ton Capacity as per the Customer Requirements.
» Hydraulic Molding Presses will be available in Pillar / Gate / H-Frame Type.
» High Capacity press will be preferred in column type
» Hydraulic Molding Press will be manufactured as per the customer requirements
» Click here to Request a Quotation for Hydraulic Press over & above the specified capacity.
