Home » Hydraulic Press for Molding » Hydraulic Compression Molding Press
Click here for Specifications

Hydraulic Compression Molding Press

We, along with our team of skilled professionals, are fabricating the most efficient compression molding press with four-pillar type construction for perfect guiding of moving bolster for better performance. Compression molding presses has compact design, single body, easy operating system. Compression Molding Presses also possess long slide guide with lubrication system for better accuracy which makes it the most suitable for molding of urea, rubber fiber, melamine, etc. Our range of compression molding presses are available in
- 4 Pillar Type Compression Molding Press
- Frame Type Compression Molding Press

Product Details :
Minimum Order Quantity1 Number
ConditionNew
Frame DesignH Type Frame, 4-Pillar Type
Power SourceHydraulic
CapacityUpto 400 tons
Machine TypeAutomatic, Semi-Automatic
Automation GradeAutomatic

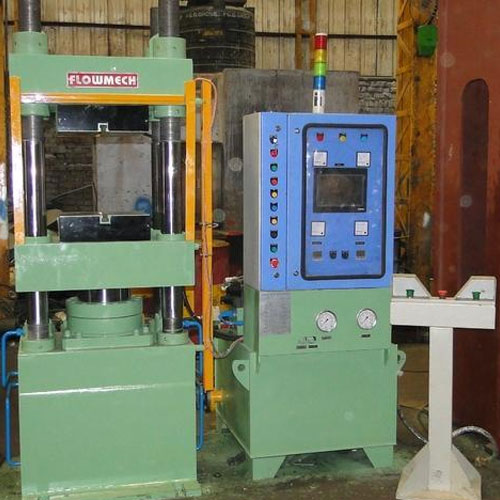

Hydraulic Compression Molding Press (4 Pillar Type)

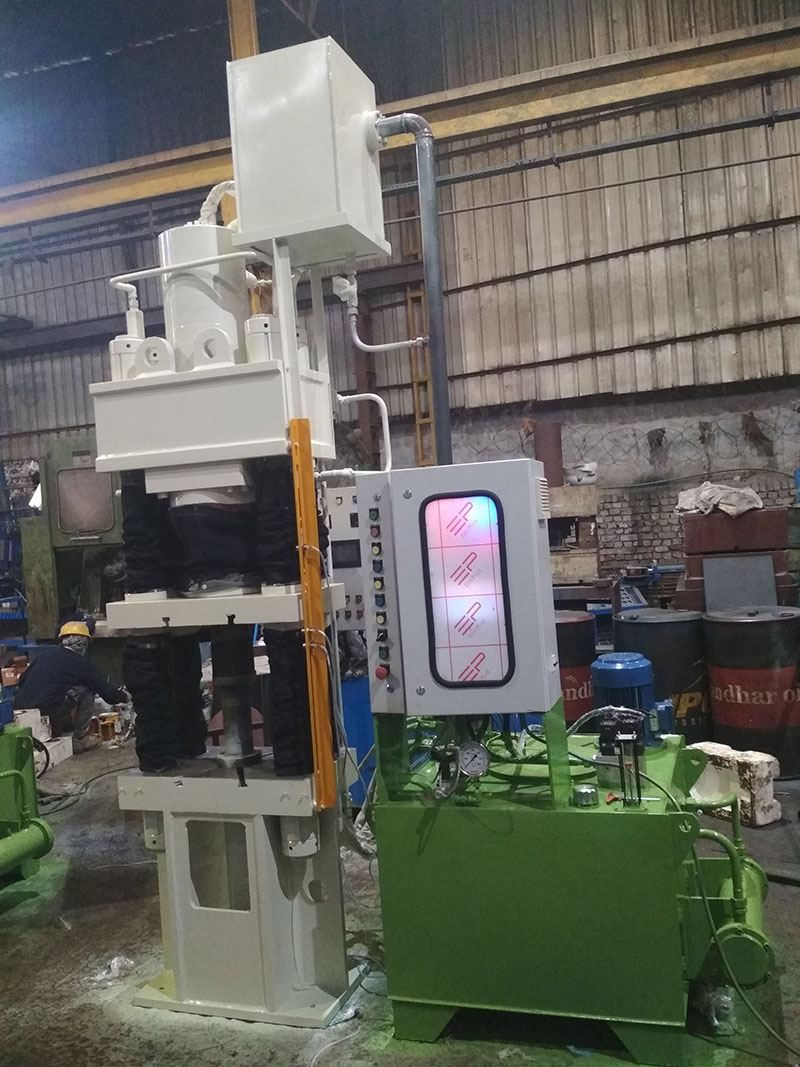

4 Pillar Type Compression Molding Press

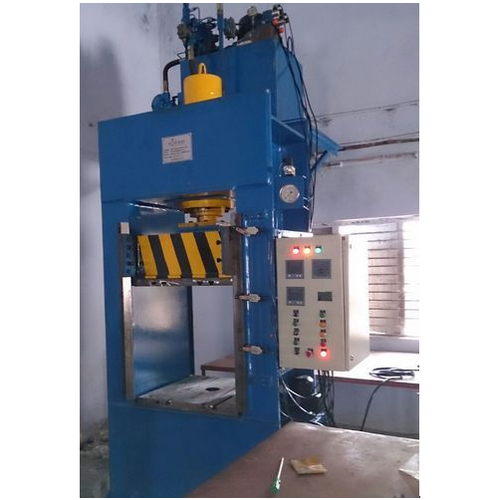

Hydraulic Compression Molding Press (Frame Type)
Frame Type Hydraulic Compression Molding Press

Frame Type Hydraulic Compression Molding Press

Hydraulic Compression Molding Press (Frame Type) We are manufacturer Frame Type Compression Molding Press, Compression molding presses have a compact design, a single body, easy operating system. Compression Molding Presses also possess long slide guide with lubrication system for better accuracy.

Product Details :
Automation Grade:Automatic
Day Light Gap:400-1800(mm)
Power Consumption:5-100(HP)
Available Frames:Pillar / Gate / H-Frame Type
CapacityUpto 4000 Ton
Machine Type:Automatic,Semi-Automatic
Stroke(mm):250-1000(mm)



Hydraulic Compression Molding Press

Technical Specifications

MODEL NO. CAP TON PLATEN SIZE (MM) DAY LIGHT GAP (MM) STROKE (MM) BORE/ RAM DIA (MM) TRANSFER CYL. CAP. (MM) TRANSFER CYL.STR-OKE (MM) PRESS-URE KG/CM² MOTOR H.P
FCMP 100 100 400 X 400 400 250 250 40 150 210 5 Send Enquiry
FCMP 150 150 500 X 500 500 350 300 60 200 215 7.5 Send Enquiry
FCMP 200 200 600 X 600 500 350 350 80 200 210 10 Send Enquiry
FCMP 250 250 750 X 600 500 350 400 100 250 210 10 Send Enquiry
FCMP 300 300 800 X 600 600 400 430 120 250 210 15 Send Enquiry
FCMP 400 400 900 X 750 600 400 510 160 250 210 20 Send Enquiry
FCMP 500 500 1000 X 800 600 400 560 200 250 210 25 Send Enquiry
FCMP 600 600 1200 X 900 900 500 610 240 300 210 30 Send Enquiry
FCMP 800 800 1500X1000 1200 600 710 320 300 210 50 Send Enquiry
FCMP 1000 1000 1800X1000 1500 800 810 400 400 210 75 Send Enquiry
FCMP 1200 1200 2000X1200 1800 1000 860 500 450 210 100 Send Enquiry



Note:
» Compression Molding Press is available upto 4000 Ton Capacity as per the Customer Requirements.
» Compression Molding Press will be available in Pillar / Gate / H-Frame Type.
» High Capacity press will be preferred in column type
» Compression Molding Presses are manufactured as per the customer requirements
» Click here to Request a Quotation for Hydraulic Press over & above the specified capacity.
