Home » Hydraulic Press for Molding » Hydraulic SMC/DMC Molding Press
Click here for Specifications

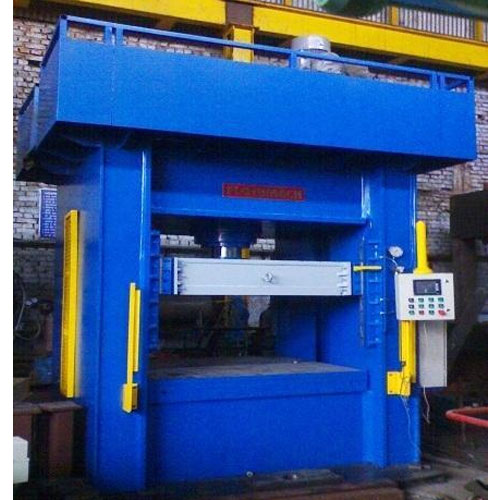

Hydraulic SMC/DMC Molding Press

We offer Hydraulic SMC Moulding Press that are specially designed for optimum production of simple and intricate molding of Bakelite, Malamine, DMC/SMC with ejection facility. Our SMC Moulding Press can be availed in fully automatic and semi-automatic models. The soft opening just after the curning point helps in avoiding jerk movements. Our Hydraulic SMC moulding presses are available with electric heaters and control panels backed by a digital temperature controller. These SMC Moulding Press and Hydraulic SMC Moulding Press are highly productive, durable and can be availed in capacities ranging from 30 ton to 4000 ton as per the requirements.

Product Details :
Minimum Order Quantity1 Number
Automation GradeSemi-Automatic
ConditionNew
Machine TypeAutomatic
Voltage220V
MaterialMild steel
Capacity30 ton to 4000 ton
Power SourceHydraulic


Hydraulic SMC/DMC Molding Press
Hydraulic SMC Moulding Press


HYDRAULIC SMC MOULDING PRESS

Technical Specifications

MODEL NO. CAP TON PLATEN SIZE (MM) DAY LIGHT GAP (MM) STROKE (MM) BORE/ RAM DIA (MM) TRANSFER CYL. CAP. (MM) TRANSFER CYL.STR-OKE (MM) PRESS-URE KG/CM² MOTOR H.P
FSMP 100 100 400 X 400 400 250 250 40 150 210 5 Send Enquiry
FSMP 150 150 500 X 500 500 350 300 60 200 215 7.5 Send Enquiry
FSMP 200 200 600 X 600 500 350 350 80 200 210 10 Send Enquiry
FSMP 250 250 750 X 600 500 350 400 100 250 210 10 Send Enquiry
FSMP 300 300 800 X 600 600 400 430 120 250 210 15 Send Enquiry
FSMP 400 400 900 X 750 600 400 510 160 250 210 20 Send Enquiry
FSMP 500 500 1000 X 800 600 400 560 200 250 210 25 Send Enquiry
FSMP 600 600 1200 X 900 900 500 610 240 300 210 30 Send Enquiry
FSMP 800 800 1500X1000 1200 600 710 320 300 210 50 Send Enquiry
FSMP 1000 1000 1800X1000 1500 800 810 400 400 210 75 Send Enquiry
FSMP 1200 1200 2000X1200 1800 1000 860 500 450 210 100 Send Enquiry



Note:
» Hydraulic SMC Moulding Press is available upto 4000 Ton Capacity as per the Customer Requirements.
» Hydraulic SMC Moulding Press are available in Pillar / Gate / H-Frame Type.
» High Capacity press will be preferred in column type
» The press will be manufactured as per the customer requirements
» Click here to Request a Quotation for Hydraulic Press over & above the specified capacity.
