Home » Hydraulic Press for Sheet Metal » Hydraulic Forming Press
Click here for Specifications

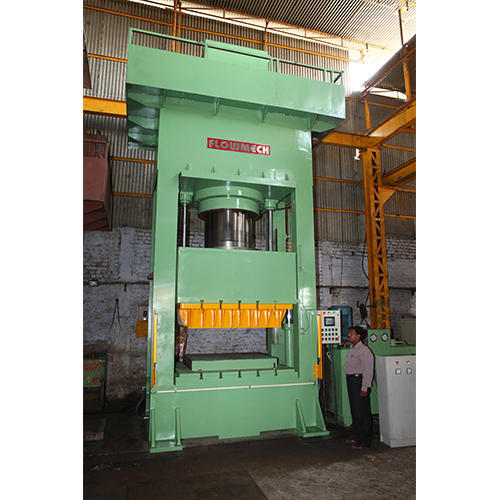

Hydraulic Forming Press

A hydraulic press is a system that generates compressive forces for general engineering purposes by using hydraulic power. This has a wide range of engineering applications. Molding, punching, deep drawing, forming, and other engineering applications make use of it.

A typical Hydroforming Presses is made up of a strong structure that houses the hydraulic system, reservoir, control panel, platform, piston or ram, and can handle multiple loads. They are classified based on the structure of the press or the application for which it was designed.

Presses are designed and developed in close collaboration with our customers to provide the most efficient specification combination for a more efficient work cycle with our presses.

Our hydraulic forming press has the highly robust construction with eight points long slide guide for perfect guiding with centralizing lubrication system, water cooled heat exchanger and PLC control. This is equipped with rubber tool bolster and is mainly used for making of aluminum and stainless steel products against rubber pads.

Our hydraulic forming presses also features advanced hydro electronic controls which give better quality products with more production rate. A hydraulic forming press is available up to 4000 Ton Capacity as per the customer's requirements.


Hydraulic Forming Press
Hydraulic Forming Press



HYDRAULIC FORMING PRESS

Technical Specifications

MODEL NO. CAP. TON MAIN CYL. CAP. (mm) BLANK HOLDER CAP (mm) BOLSTER SIZE (mm) DAY LIGHT GAP (mm) BLANK HOLDER STROKE MAIN CYL. STROKE MOTOR H.P. EJECTOR CYL. CAP. (Tons)
FDAP 150 150 75 75 700 X 700 600 300 550 7.5 X 1 10 Send Enquiry
FDAP 250 250 150 150 900 X 900 600 300 550 10 X 1 15 Send Enquiry
FDAP 400 400 200 200 1200 X 1200 750 400 700 20 X 1 20 Send Enquiry
FDAP 500 500 250 250 1200 X 1500 800 450 750 20 X 1 20 Send Enquiry
*FDAP 500 500 250 250 1200 X 1800 800 450 750 25 X 1 20 Send Enquiry
FDAP 600 600 300 300 1500 X 1800 900 450 850 20 X 2 25 Send Enquiry
FDAP 800 800 400 400 1800 X 1800 1000 500 900 30 X 2 25 Send Enquiry
FDAP 1000 1000 500 500 2000 X 2000 1200 600 1100 40 X 2 25 Send Enquiry


Note:
» Hydraulic Forming Press is available upto 4000 Ton Capacity as per the customer's specific requirements
» Hydraulic Forming Press will be available with Pillar / Gate / Frame Type
» High Capacity press will be prefered in column type.
» Hydraulic Forming Presses are manufactured as per the customer requirement.
» Click here to Request a Quotation for Hydraulic Press over & above the specified capacity.
