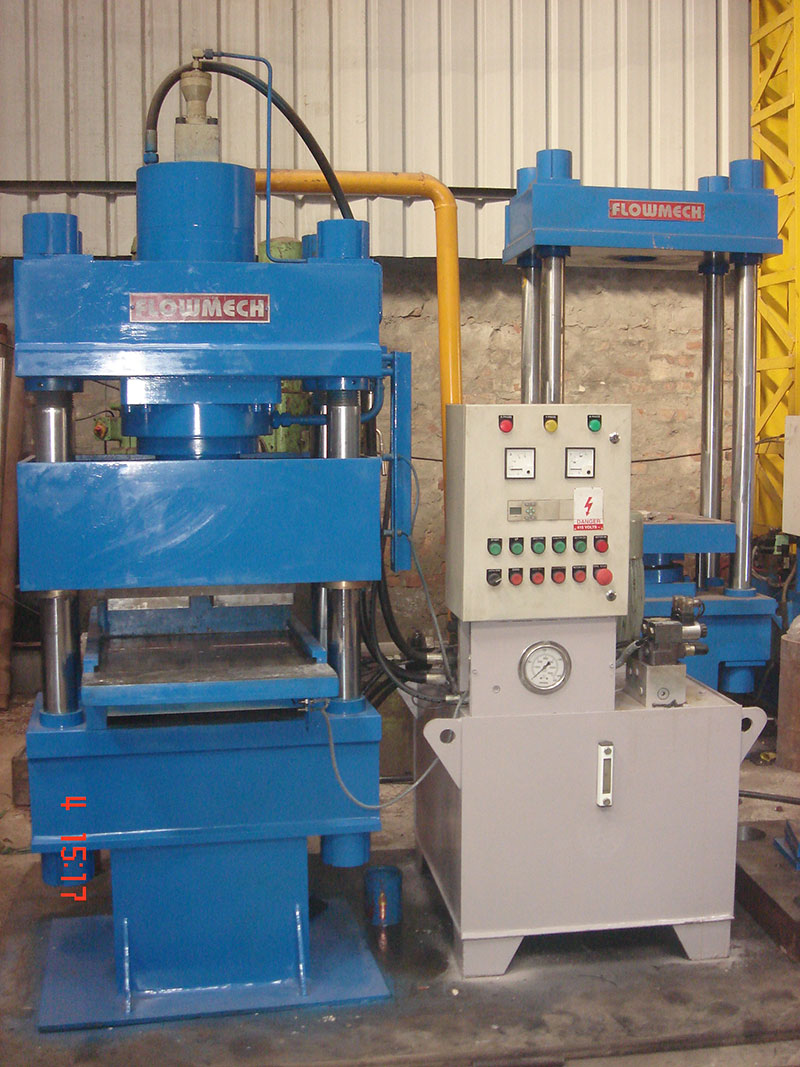

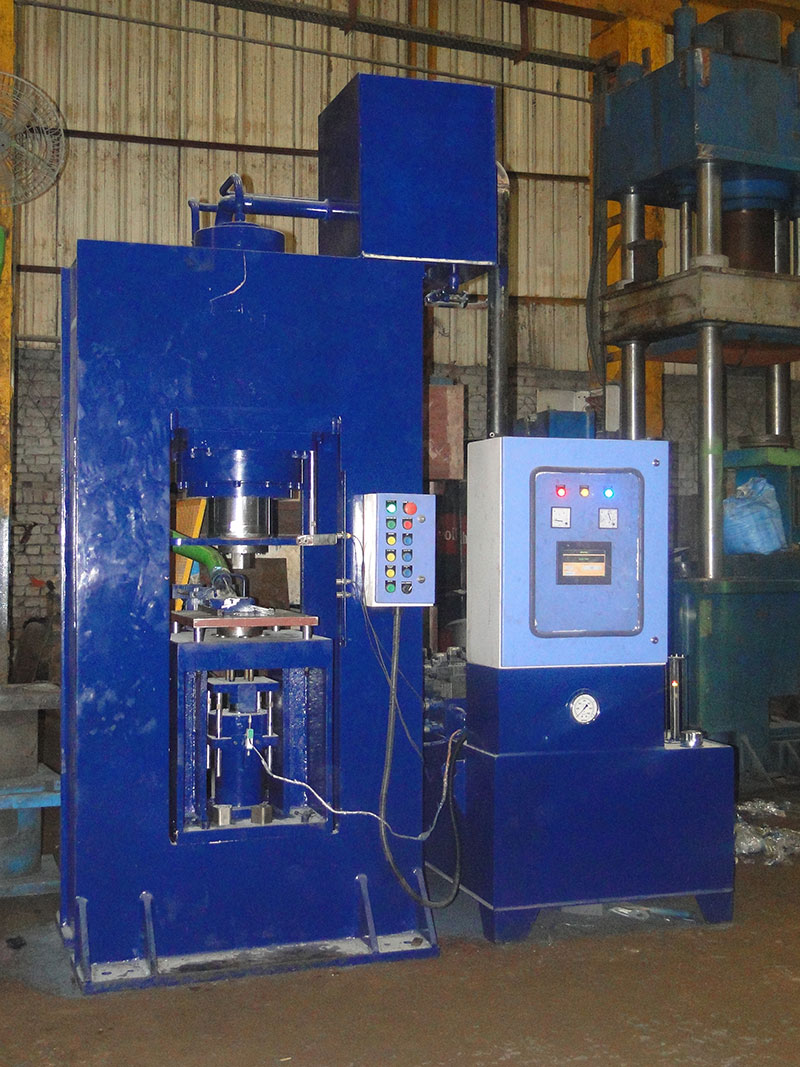

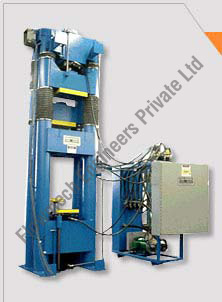

Hydraulic Powder Compacting Press

Hydraulic Powder Compacting Press is ideally suited for powder compaction applications. Flowmech Powder Compacting Press is capable of forming complex shape moulded parts with uniform density throughout a varying cross section and can handle different range of powder materials. In these presses, powder is pushed into cavaty and the compound into the shape of the product. Powder Compacting Press is used in various industries viz. tabled making, brake lining etc.

Hydraulic Powder Compacting Press
Hydraulic Powder Compacting Press


Hydraulic Powder Compacting Press

Technical Specifications

MODEL NO. CAP. TON PLATEN SIZE (MM) DAY LIGHT GAP (MM) STROKE (MM) BORE/ RAM DIA (MM) MOTOR H.P MAX. WORK PRESSURE KG/CM²
FPCP 25 25 250 X 250 250 200 150 3 210 Send Enquiry
FPCP 50 50 300 X 300 300 250 200 5 210 Send Enquiry
FPCP 100 100 400 X400 400 300 250 5 210 Send Enquiry
FPCP 150 150 500 x 400 500 400 300 10 210 Send Enquiry
FPCP 200 200 600 X 500 600 450 350 15 210 Send Enquiry
FPCP 250 250 750 x 600 600 450 400 15 210 Send Enquiry
FPCP 300 300 750 X 600 600 450 460 20 210 Send Enquiry
FPCP 400 400 900 X 750 750 600 510 25 210 Send Enquiry
FPCP 500 500 1000 X 800 750 600 560 30 210 Send Enquiry
