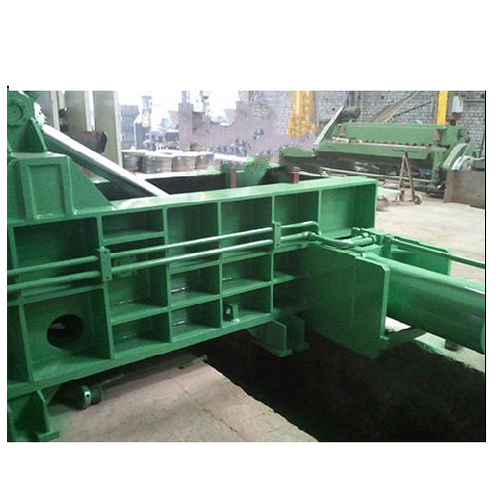

Hydraulic Baling Press

Flowmech horizontal hydraulic baling press is designed for processing ferrous or non-ferrous scrap in all forms. Various wastes like paper waste, fruit chips, sugarcane waste, metal chips waste, other leftovers are compressed into cuboid bales. The arrangements are provided to tie the bales manually with the help of grooves provided. This makes it easy for transportation and storage.

Lab Testing Machine

TRIPPLE COMPRESSION	FHBP 150	ALFA	SEMI
BALING CHAMBER	30" X 40" X 77" (HxWxL)	24"x 32"x 60" (HxWxL)	20" X 22" X 45" (WxHxL)
BALE SIZE	15" X 15" X 8-10"	12"x12"x6-8"	10"x10"x6-8" (WxHxL)
ELECTRIC MOTOR	40 HP 3 PHASE 1440 RPM	30 HP 3 PHASE 1440 RPM	20 HP 3 PHASE 1440 RPM
BODY	FABRICATED	FABRICATED	-
OIL DRIVE	GEAR CUM PLUNGER PUMP	GEAR CUM PLUNGER PUMP	PLUNGER PUMP
WORKING LIQUID	HYDRO / EBCKI-68	HYDRO / ENLCO-68	HYDROL / ENCLO-68
FORCE ON LID	70 TONS	40 TONS	40 TONS
FORCE ON MAIN CYLINDER	70 TONS	70 TONS	75 TONS
FORCE ON SIDE CYLINDER	150 TONS	125 TONS	75 TONS
FORCE EJECTOR CYLINDER	10 TONS	10 TONS	10 TONS
WORKING PRESSURE	3000 PSI	3000 PSI	3000 PSI
HARD LINER PLATES	PROVIDED	PROVIDED	PROVIDED
SHEARING BLADES	PROVIDED	PROVIDED	PROVIDED
STARTER	PROVIDED	PROVIDED	PROVIDED
WEIGHT OF THE BALE	70-80 Kgs (Approx) (in MS) 25-30 Kgs (Approx) (in Aluminium)	50-60 Kgs (Approx) (in MS) 15-20 Kgs (Approx) (in Aluminium)	30-40Kgs (Approx) (in MS)
IDLE CYCLE TIME	120 second (Approx)	95 Second (Approx)	90-95 Second (Approx)
WEIGHT OF THE MACHINE	9-10 Tons (Approx)	6-7 Tons (Approx)	5 Tons (Approx)
OIL TANK CAPACITY	900 Lts.	600 Lts.	300 Lts.
