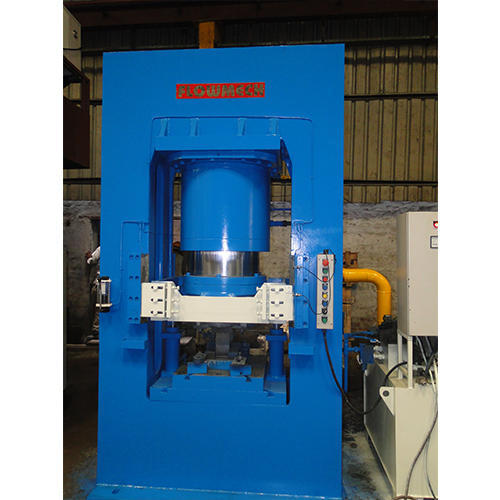

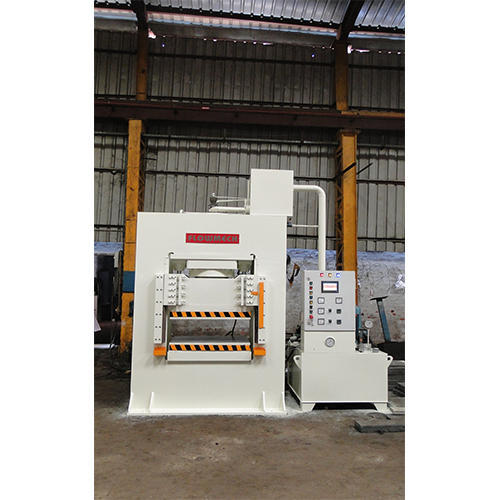

Single Action Hydraulic Press
We manufacture the most efficient single
action hydraulic press that is suitable for various operations. Single
action hydraulic presses are highly rigid and compact to avoid any
deflection during operation/load, space saving, high speed press suitable
for operation like cold forming, coining, trimming, stamping, blanking,
embossing, bending used in stainless steel sink industries, automobile
industries etc. We manufacture single action hydraulic presses with
utmost care to offer effective and durable output.

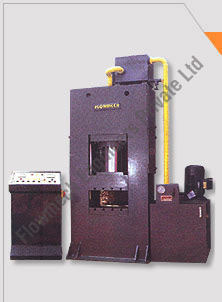

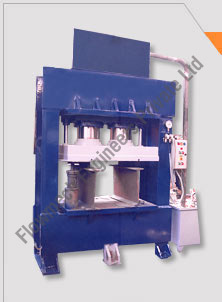

Single Action Hydraulic Press
|

Single Action Hydraulic Press
|
SINGLE ACTION HYDRAULIC PRESS
Technical Specifications
| MODEL NO. |
CAP. (TON) |
PLATEN SIZE (mm) |
DAY LIGHT GAP (mm) |
STROKE |
BORE / RAM Dia |
MOTOR (H.P) |
MAX. WORK PRESSURE (kg/cm2) |
|
| FHP-30 |
30 |
300x300 |
600 |
300 |
200 |
3 |
210 |
Send
Enquiry |
| FHP-60 |
60 |
400x400 |
600 |
300 |
200 |
5 |
210 |
Send
Enquiry |
| FHP-75 |
75 |
450x450 |
700 |
400 |
220 |
5 |
210 |
Send
Enquiry |
| FHP-100 |
100 |
500x500 |
750 |
500 |
250 |
15 |
210 |
Send
Enquiry |
| FHP-125 |
125 |
550x500 |
750 |
500 |
280 |
10 |
210 |
Send
Enquiry |
| FHP-150 |
150 |
600x500 |
800 |
550 |
300 |
10 |
210 |
Send
Enquiry |
| FHP-200 |
200 |
750x600 |
800 |
600 |
350 |
15 |
210 |
Send
Enquiry |
| FHP-250 |
250 |
800x600 |
900 |
600 |
400 |
15 |
210 |
Send
Enquiry |
| FHP-300 |
300 |
900x600 |
1000 |
600 |
460 |
20 |
210 |
Send
Enquiry |
| FHP-400 |
400 |
1000x750 |
1200 |
700 |
510 |
25 |
210 |
Send
Enquiry |
| FHP-500 |
500 |
1000x800 |
1200 |
750 |
560 |
30 |
210 |
Send
Enquiry |
Note:
» The Press can be designed Pillar / Gate / H-Frame Type
» The Press can be provided with speed as per your requirement.
» The motor h.p. can be changed as per the speed required.
» Click here to
Request a
Quotation for Hydraulic Press over & above the specified
capacity.
