Rubber Molding Press

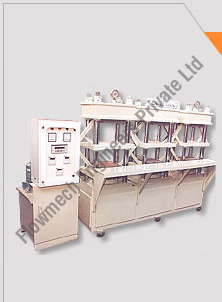

We are manufacturing fully automatic two tation PLC control rubber molding presses and three station PLC control rubber molding presses with common power pack having advance technique of auto degassing or air breathing. Rubber molding presses are used to increase the production, improves the quality and save manpower, electric power, rejection time and space. Four pillar type rubber molding press is helpful to increase the production, improve the quality and save manpower, electric power, rejection, time and space.

RUBBER MOLDING PRESS

MODEL NO.	CAP. (TON)	PLATEN SIZE (mm)	DAYLIGHT GAP (mm)	STROKE	BORE / RAM Dia	MOTOR (H.P)
FRM-30	30	200x200	200	150	150	2	Send Enquiry
FRM-60	60	250x250	200	150	200	3	Send Enquiry
FRM-80	80	300x300	250	200	230	5	Send Enquiry
FRM-100	100	350x350	300	250	250	5	Send Enquiry
FRM-150	150	450x450	400	300	300	7.5	Send Enquiry
FRM-200	200	500x500	450	350	350	10	Send Enquiry
FRM-250	250	600x600	450	350	400	10	Send Enquiry
FRM-300	300	700x600	500	400	460	15	Send Enquiry
FRM-400	400	800x650	500	400	510	20	Send Enquiry
FRM-500	500	900x750	600	450	560	20	Send Enquiry
FRM-600	600	1000x800	600	450	610	25	Send Enquiry
FRM-700	700	1200x800	750	500	660	25	Send Enquiry
FRM-800	800	1200x800	750	500	710	30	Send Enquiry
FRM-1000	1000	1350x1000	900	550	810	50	Send Enquiry

Note:

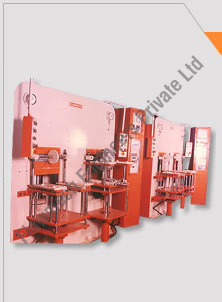

» Rubber Molding Press can be designed Pillar / Gate-H Frame Type
» Rubber Molding Presses can have Multi Daylights (1,2,3,4)
» Rubber Molding Press can have Multi Station (1,2,3,4)
» For Multi Station Press, Motor H.P. will change accordingly
» Click here to Request a Quotation for Hydraulic Press over & above the specified capacity.
