Home » Hydraulic Press for Special Purpose » Hydraulic Squeezing Press
Click here for Specifications

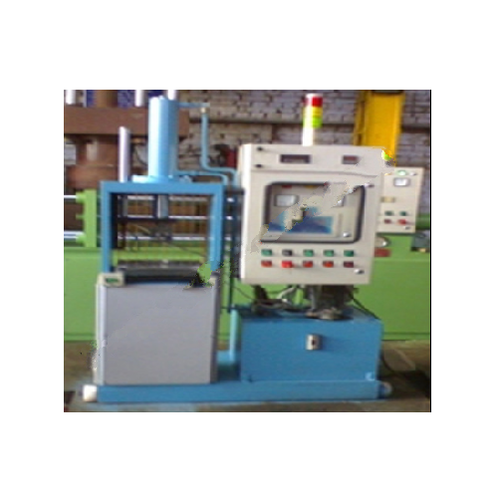

Hydraulic Squeezing Press

We are one of the leading manufacturers of hydraulic squeezing presses. These hydraulic squeezing presses are manufactured using the finest quality materials that are procured from the most reliable sources in the market. Our range of hydraulic squeezing presses are widely appreciated by our reputed clients for its superior quality and durability and is available at a competitive market price. These hydraulic squeezing presses are custom made as per our clients specification. .

Hydraulic Squeezing Press
Hydraulic Squeezing Press


Hydraulic Squeezing Press

Technical Specifications

MODEL NO. CAP. TON PLATEN SIZE (MM) DAY LIGHT GAP (MM) STROKE (MM) BORE/ RAM DIA (MM) MOTOR H.P MAX. WORK PRESSURE KG/CM²
FHSP 25 25 250 X 250 250 200 150 3 210 Send Enquiry
FHSP 50 50 300 X 300 300 250 200 5 210 Send Enquiry
FHSP 100 100 400 X400 400 300 250 5 210 Send Enquiry
FHSP 150 150 500 x 400 500 400 300 10 210 Send Enquiry
FHSP 200 200 600 X 500 600 450 350 15 210 Send Enquiry
FHSP 250 250 750 x 600 600 450 400 15 210 Send Enquiry
FHSP 300 300 750 X 600 600 450 460 20 210 Send Enquiry
FHSP 400 400 900 X 750 750 600 510 25 210 Send Enquiry
FHSP 500 500 1000 X 800 750 600 560 30 210 Send Enquiry

Yes I'm Interested



Note:
The Press Is Available Up To 2000 Ton Capacity As Per The Customer Requirement.
The Press Can Be Used For Squeezing / Powder Compacting / Briquitting Etc.
The Press Can Be Manufactured As Per Customer Requirement.
According To The Speed Of The Press, Motor H.P Can Be Changed.
A) With Pressure Transmitter For Precise Pressure Sensing.
B) With Load Cell & L.V.D.T For Precise Load & Stroke Control Sensing.
