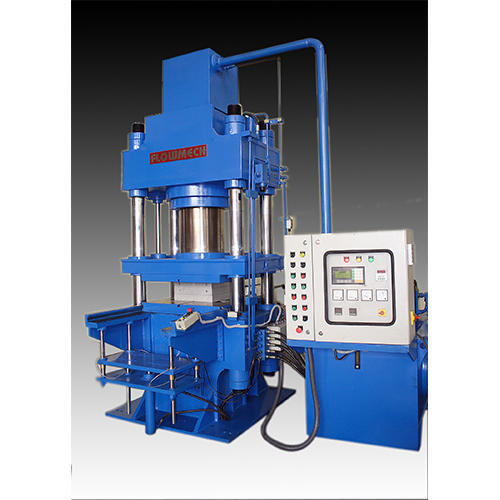

Hydraulic Preforming Press

We manufacture high quality hydraulic preforming press of two types: 4 pillar type preforming press and C-frame type preforming press. Our machines are specially designed for preforming of carbon powder for brake lining, disk pads brake shoes, briquette/ pallets industries, compacting / preforming and manufacturing non-ferrous, iron based, anti friction powder components. All these machines are compact, high speed and effective.

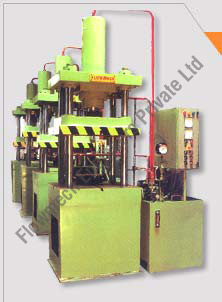

Hydraulic Preforming Press(4 Pillar Type)
Hydraulic Preforming Press (4 Pillar Type)

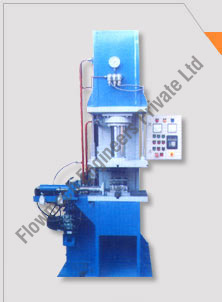

Hydraulic Preforming Press (C-Frame Type)
Hydraulic Preforming Press (C-Frame Type)



HYDRAULIC PREFORMING PRESS FOR BRAKE LINING

Technical Specifications

MODEL NO. CAP. (TONs) PLATEN SIZE (mm) DAY LIGHT GAP (mm) STROKE BORE / RAM DIA MOTOR (h.p)
FPM 60 60 300 X 300 400 300 200 5 Send Enquiry
FPM 100 100 400 X 400 400 300 250 7.5 Send Enquiry
FPM 150 150 600 X 500 500 400 300 7.5 Send Enquiry
FPM 200 200 700 X 600 500 400 350 10 Send Enquiry
FPM 250 250 750 X 750 600 400 400 15 Send Enquiry
FPM 300 300 900 X 900 600 400 450 20 Send Enquiry
FPM 400 400 1000 X 1000 700 400 510 25 Send Enquiry

Yes I'm Interested


Note:
» Hydraulic Preforming Press can be designed be available with Pillar / Gate / H-Frame Type
» Hydraulic Preforming Presses have multiday lights (1,2,3,4)
» Hydraulic Preforming Press can be multi station(1,2,3,4)
» For multistation press, motor h.p. will change accordingly
» Click here to Request a Quotation for Hydraulic Press over & above the specified capacity.
