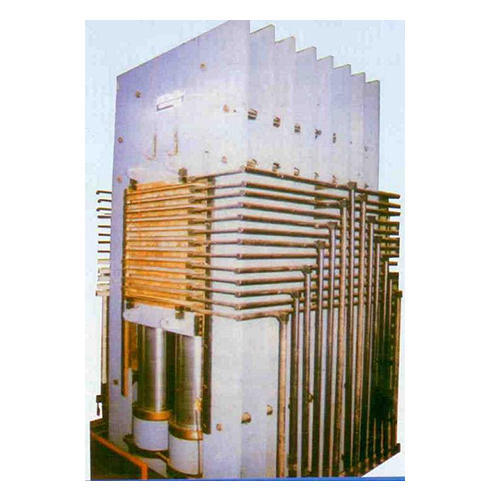

Hydraulic Plywood Press

We manufacture hydraulic plywood press, machine as per customer’s specification. These hydraulic plywood presses are manufactured using the finest quality materials that are procured from the most reliable sources in the market. Our range of hydraulic plywood presses are manufactured in superior quality and durability and is available at a competitive market price. These hydraulic plywood presses are available in various capacities such as:

Hydraulic Plywood Press
Hydraulic Plywood Press


Hydraulic Plywood Press

Technical Specifications

MODEL NO. CAP. (TONS) PLATEN SIZE (MM) NO. OF DAYLIGHT DAY LIGHT GAP (MM) STROKE (MM) NO. OF CYL. BORE/ RAM DIA (MM) WORKING PRESSURE KG/CM² MOTOR H.P
FPHP 600 600 2000 X 1200 8 NOS. 130 EACH 600 8 NOS. 220 210 25 Send Enquiry
FPHP 800 800 2600 X 1300 8 NOS. 130 EACH 600 8 NOS. 250 210 25 Send Enquiry
FPHP 1000 1000 2600 X 1300 8 NOS. 130 EACH 600 8 NOS. 280 210 30 Send Enquiry


Yes I'm Interested




Note
The Press Can Be Designed Gate / H-Frame Type & As Per Customer Requirment.
The Press Can Have Multi Daylights (1 To 8).
