Home » Hydraulic Press for Molding » Hydraulic Hot Moulding Press
Click here for Specifications

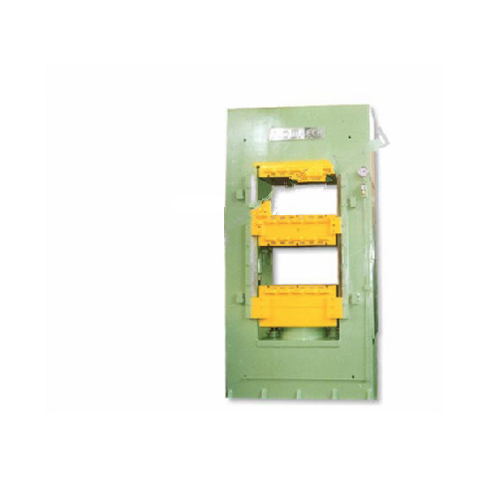

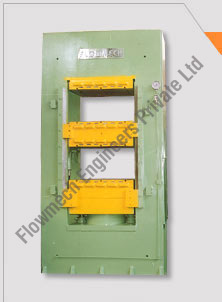

Hydraulic Hot Moulding Press

Hydraulic Hot Moulding Press are specially designed for for optimum production of simple and intricate hot moulding of brake lining components with ejection facility. Hydraulic Hot Moulding Presses have soft opening immediately after the curning period to minimize any jerky movement which may cause damage to the components that is being molded. Flowmech also manufacture hydraulic hot moulding press as per the customer's requirements.


Hot Molding Press
Hydraulic Hot Moulding Press

HYDRAULIC HOT MOULDING PRESS

Technical Specifications

MODEL NO. CAP. (TONS) PLATEN SIZE (MM) DAY LIGHT GAP (MM) STROKE (MM) BORE/ RAM DIA (MM) MOTOR H.P
FHMP 50 50 250 X 250 200 150 180 3 Send Enquiry
FHMP 100 100 350 X 350 300 250 250 5 Send Enquiry
FHMP 150 150 450 X 450 400 300 300 7.5 Send Enquiry
FHMP 200 200 500 X 500 450 350 350 10 Send Enquiry
FHMP 250 250 600 X 600 450 350 400 10 Send Enquiry
FHMP 300 300 700 X 600 500 400 460 15 Send Enquiry
FHMP 400 400 800 X 650 500 400 510 20 Send Enquiry
FHMP 500 500 900 X 750 600 450 560 20 Send Enquiry
FHMP 600 600 1000 X 800 600 450 610 25 Send Enquiry
FHMP 800 800 1200 X 800 750 500 710 30 Send Enquiry
FHMP 1000 1000 1350 X 1000 900 550 810 50 Send Enquiry

Yes I'm Interested


Note:
» Hot Moulding Press is available upto 4000 Ton Capacity as per the Customer Requirements.
» The Hot Moulding Press will be available in Pillar / Gate / H-Frame Type.
» High Capacity press will be preferred in column type
» Hydraulic Hot Moulding press will be manufactured as per the customer requirements
» Click here to Request a Quotation for Hydraulic Press over & above the specified capacity.
