Hydraulic Brick Press

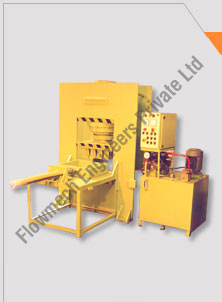

Hydraulic Brick Press
Specially designed Hydraulic Presses for
manufacturing Flyash Bricks under mass production. We are the leading
manufacturers of hydraulic brick press, fly ash brick press. It is easy to
operate labour saving high speed, high efficiency press having the following
parts:
- Automatic Filling Arrangement.
- High Pressure Pressing Frame.
- Hydraulic Power Pack.
- Push Button Operation Panel.
Hydraulic Brick Press
Technical Specifications
| MODEL NO. |
CAP. TON |
PLATEN SIZE (MM) |
DAY LIGHT GAP (MM) |
STROKE (MM) |
BORE/ RAM DIA (MM) |
MOTOR H.P |
MAX. WORK PRESSURE KG/CM² |
|
| FHBP 150 |
150 |
750 X 600 |
350 |
250 |
300 |
10 |
210 |
Send
Enquiry |
| FHBP 200 |
200 |
900 X 600 |
400 |
250 |
350 |
15 |
210 |
Send
Enquiry |
| FHBP 250 |
250 |
1000 X 750 |
500 |
350 |
400 |
15 |
210 |
Send
Enquiry |
