Double Action Hydraulic Press

We, at Flowmech, also manufacture double action hydraulic press with highly compact, rigid and space saving design. Double action hydraulic presses are equipped with PLC, L.V.D.T depth control automatic photo sensor. Double action hydraulic presses are used for manufacturing stainless steel sinks, geysers, A.C., L.P.G. cylinders and other automobile draw components. With this highly efficient double action hydraulic press, we are successfully satisfying the needs of our esteemed customers through specialized designs and latest trends.

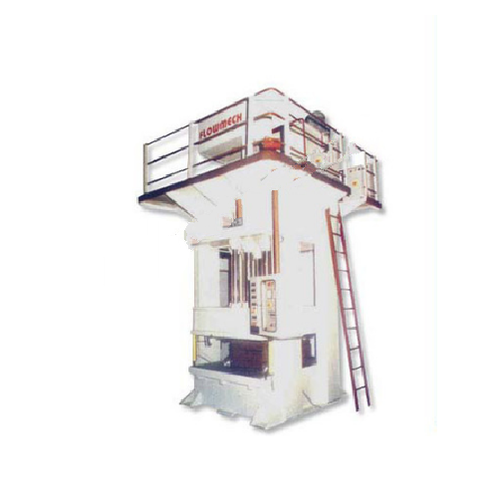

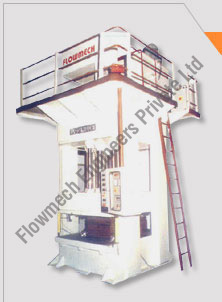

Semi Automatic Double Action Deep Draw Press
Semi Automatic

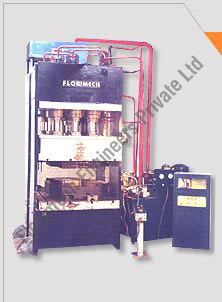

Semi-Automatic Double Action Deep Draw Press
Semi Automatic


DOUBLE ACTION HYDRAULIC PRESS

Technical Specifications

MODEL NO. CAP. TON Main cyl. cap. (mm) Blank holder cap (mm) bolster size (mm) day-light gap blank holder stroke main cyl. stroke motor h.p. Ejector cyl. cap. (tons)
FDAP 150 150 75 75 700 X 700 600 300 550 7.5 X 1 10 Send Enquiry
FDAP 250 250 150 150 900 X 900 600 300 550 10 X 1 15 Send Enquiry
FDAP 400 400 200 200 1200 X 1200 750 400 700 20 X 1 20 Send Enquiry
FDAP 500 500 250 250 1200 X 1500 800 450 750 20 X 1 20 Send Enquiry
*FDAP 500 500 250 250 1200 X 1800 800 450 750 25 X 1 20 Send Enquiry
FDAP 600 600 300 300 1500 X 1800 900 450 850 20 X 2 25 Send Enquiry
FDAP 800 800 400 400 1800 X 1800 1000 500 900 30 X 2 25 Send Enquiry
FDAP 1000 1000 500 500 2000 X 2000 1200 600 1100 40 X 2 25 Send Enquiry

Yes I'm Interested

Note:
» Double Action Hydraulic Press is available upto 4000 Ton Capacity as per the customer's specific requirements
» Double Action Hydraulic Press will be available with Pillar / Gate / Frame Type
» High Capacity press will be prefered in column type.
» Double Action Hydraulic Presses will be manufactured as per the customer requirement.
» Click here to Request a Quotation for Hydraulic Press over & above the specified capacity.
