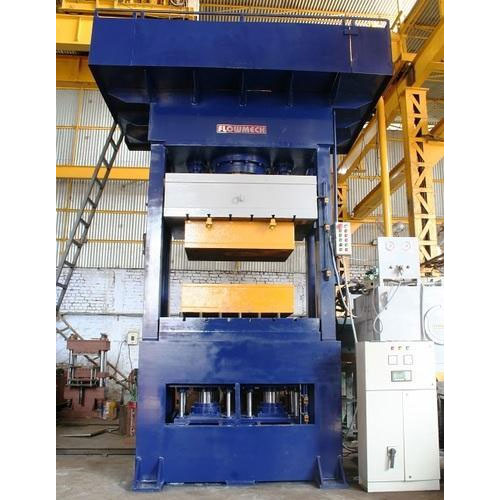

Deep Draw Press

We offer heavy duty frame type deep draw press, hydraulic deep drawing presses, which are widely used in different industries to manufacture deep drawing components. These are heavy duty, high performance, pillar type hydraulic press for manufacturing deep drawing press components. Impeccably equipped with most advanced hydraulic & electronic (PLC) control. They are designed for high off center loads with heavy RAM force. Accurate slide guiding with full stroke length is helpful to provide the better accuracy & effective performance of the presses. Deep draw press is perfect for deep drawing automobile sheet metal components, oil tanks, stainless steel kitchen sinks, mudguards etc.


Deep Draw Press - Die Cussion (Pillar-Type)
Die Cussion (Pillar-Type)


Deep Draw Press - Die Cussion (Frame-Type)
Die Cussion (Frame-Type)


HYDRAULIC DEEP DRAW PRESS

Technical Specifications

MODEL NO. CAP. (TON) PLATEN SIZE (mm) DAY LIGHT GAP (mm) MAIN CYL. STROKE (mm) DIE CUSHION CAP. (TON) DIE CUSHION CYL. STROKE (mm) DIE CUSHION TABLE (mm) MOTOR (H.P.)
FDCP-150 150 600x600 600 400 60 250 300x300 20 Send Enquiry
FDCP-250 250 900x750 750 450 100 300 450x300 40 Send Enquiry
FDCP-400 400 1350x1000 800 500 160 300 800x500 30x2 Send Enquiry
FDCP-500 500 1500x1000 800 500 200 350 900x600 40x2 Send Enquiry
FDCP-600 600 1600x1200 900 600 240 400 900x600 60x2 Send Enquiry
FDCP-800 800 1800x1500 1000 600 320 400 1000x800 60x2 Send Enquiry
FDCP-1000 1000 2100x1800 1200 750 400 450 1200x1000 75x2 Send Enquiry
FDCP-1200 1200 2500x2000 1200 750 480 500 1500x1200 100x2 Send Enquiry

Note:
» Deep Draw Press is available upto 4000 Ton Capacity as per the customer's specific requirements
» Deep Drawing Press will be available with Pillar / Gate / Frame Type
» High Capacity press will be prefered in column type.
» The Press will be manufactured as per the customer requirement.
