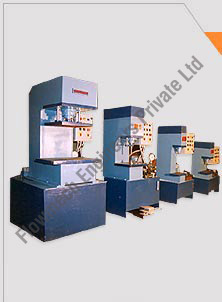

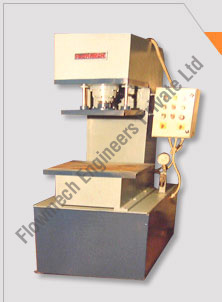

C-Frame Hydraulic Press

Our C-Frame Hydraulic Presses have rigid and sturdy steel welded construction for minimum deflection of the frame. They are compact with an inbuilt hydraulic power pack for multi productivity and operated with most advanced Electronic control (PLC). C-Frame press manufactured by us, are easy to install, economical and operate with high speed. C-frame hydraulic presses are being used for wide array of jobs like straightening, punching, molding, bending, drawing, assembling, riveting and other general purposes.

C-FRAME HYDRAULIC PRESS

MODEL NO.	CAP. TON	PLATEN SIZE (MM)	DAY LIGHT GAP (MM)	STROKE (MM)	BORE/ RAM DIA (MM)	PRESSURE KG/CM²	MOTOR H.P
FCFP 10	10	200 X 200	250	200	90	160	2	Send Enquiry
FCFP 25	25	250 X 250	300	250	140	170	3	Send Enquiry
FCFP 50	50	400 X 400	400	300	180	210	5	Send Enquiry
FCFP 75	75	450 X 400	400	300	220	210	7.5	Send Enquiry
FCFP 100	100	500 X 400	500	400	250	210	10	Send Enquiry
FCFP 150	150	600 X 450	600	450	300	215	15	Send Enquiry
FCFP 200	200	800 X 500	750	500	350	210	15	Send Enquiry
FCFP300	300	1200X800	800	500	450	210	20	Send Enquiry

Note:
» C-Frame hydraulic press can be used for simple pressing / coining / stamping / beinding etc. and also for die cushion, induction table & rubber molding.
» In case of die-cushion, die cushion cylinder with other system will be provided.
» In case of rubber molding, heating provision in working platen can be provided.
» According to the speed of the press, Motor H.P. can be changed
» C-Frame hydraulic presses can be supplied with
   a. Die Cushion / Ejection
   b. with pressure transmitter for precise pressure sensing
   c. with load cell & L.V.D.T. for precise load & stroke control sensing
» Click here to Request a Quotation for Hydraulic Press over & above the specified capacity.
